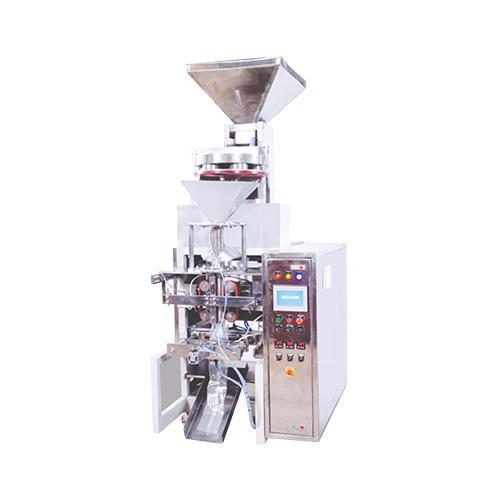

Collar Type Cup Filler Packaging Machine

Send Inquiry

Product Code : JAT-314

Price And Quantity

Minimum Order Quantity
1
Unit of Measure
Unit/Units

Price Range
250000.00 - 900000.00 INR

Product Specifications

Type
Packaging Line
Material
SS

Automatic Grade
Automatic
Control System
Human Machine Interface

Drive Type
Electric
Power
3 x 380 3 KW Watt (w)

Weight (kg)
1200 Kilograms (kg)
Color
Silver

Warranty
1 YEAR

Product Description

This Collar Type Cup Filler Packaging Machine is the industrial product that works at optimum runtime by maintaining the high degree of tolerance. We use the supreme grade of stainless steel and food grade plastic for fabricating this type of machine. It is used for packing several products such as dry fruits, spices, Namkeen, corn flakes, pulses, rice, frozen foods, and so on. The Collar Type Cup Filler Packaging Machine we offer is customized by us as per its technical specifications, size, shape, dimensions, and design according to the demand for supply.

Technical Specifications:

Product application	100gm 1kg
Sealing type	Center side seal
Packing speed	Up to 110 PPM
Filling system	Cup filler system
Packaging film	Heat sealable laminated film in roll form
Maximum film roll width	450mm
Film draw mechanism	Clutch and brake
Sealing mechanism	Intermittent
Hopper material	(SS-316 food grade)
Machine body	MS with powder coated
Product contact parts	SS made
AC drive/PLC/ Micro view	I.&T
Cylinders	Festo/Camozzi/SMC
Quick speed control	By AC drive
Compressed air require	10 CFM @ 6 BAR
Main motor	1 HP Crompton Make, 3phase/servo motor
Electric Power	3 x 380 3 KW
Machines weight	1200Kg (Approx.)
