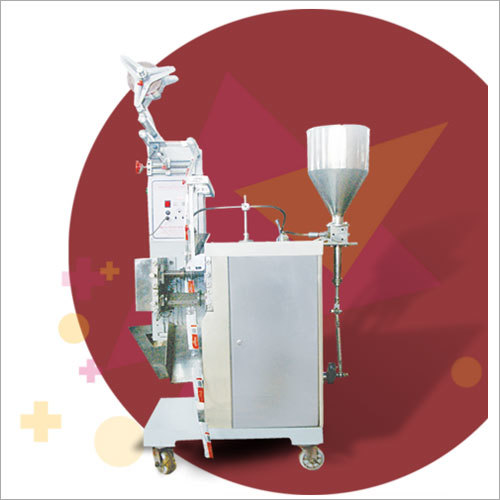

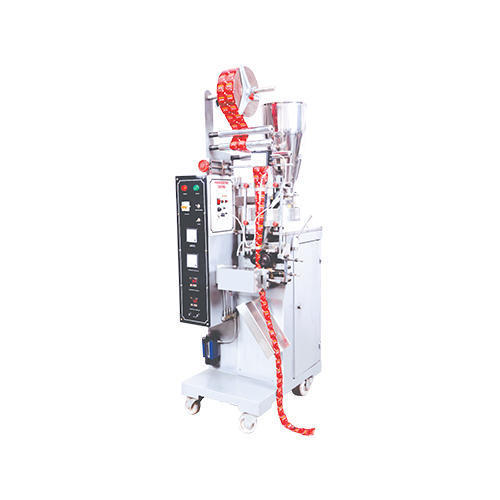

Fully Automatic Multitrack Form Fill Seal Machine

Fully Automatic Multitrack Form Fill Seal Machine
Fully Automatic Multitrack Form Fill Seal Machine
Send Inquiry
Product Code : JAT-316
Price And Quantity
  • Minimum Order Quantity
  • 1 Unit
  • Price Range
  • 250000.00 - 400000.00 INR
Product Specifications
  • Type
  • Sealing Machines
  • Material
  • SS / MS
  • Automatic Grade
  • Automatic
  • Control System
  • Human Machine Interface
  • Drive Type
  • Electric
  • Power
  • 9.4 Watt (w)
  • Weight (kg)
  • 2200 Kilograms (kg)
  • Color
  • Silver
  • Warranty
  • 1 YEAR
Product Description
Name of this machinery is enough to tell that this fully automatic device is capable of performing its function efficiently without any manual work. Fully Automatic Multi-track Form Fill Seal Machine is especially constructed with the stainless or mild steel with the help of the advanced technology for carrying out the sealing operations. It is widely being used for the purpose of packing liquid items along with granules and pastes can also be packed or sealed via this machinery. Offered Fully Automatic Multi-track Form Fill Seal Machine is available has the model number of JAT 316 A, which works with the speed of 70 SPM depending upon the product and quantity of the product to be packed. Width of the pouch in the machinery would decide the available number of tracks in it. Offered energy efficient machinery’s maximum roll diameter is 800mm.

Features of Fully Automatic Multi-track Form Fill Seal Machine:

  • Its fully automatic nature saves labor cost of the client
  • The net weight of the machinery is 2200 Kg
  • It require 9.4 KW of power for proper performance
  • This sealing machine can be availed with the one year warranty

Products: Liquid Items

Description Model

Model JAT 316 A

Model JAT 316 B

Model JAT 316 C

Machine Speed

Upto 70 SPM depending on the Product & Quality to be Packed.

Upto 65 SPM

Upto 60 SPM

Packing Range

1 ml. to 30 ml.

1 ml. to 200 ml.

1 ml. to 200 ml.

No. Of Tracks

Depending on the pouch width (8-10 track)

Depending on the pouch width upto 6 track

Depending on the pouch width upto 4 track

Max Roll Dia

800mm

600mm

400mm

Max Length of Pouch

Programmable

250mm

150mm

Film Draw Mechanism

Servo Based / Electro

Electromagnetic Clutch & Break

Electromagnetic Clutch & Break

Web Controller

Electronic Web Edge Control

Pneumo Hydraulic Web Edge Controller

Pneumo Hydraulic Web Edge Controller

Compressed Air

2 CFM @ 6 Kg/cm Sq.

2 CFM @ 6 Kg/cm Sq.

2 CFM @ 6 Kg/cm Sq.

Electric Power

9.4 KW

7.6 KW

5.0 KW

Machine Dimension

3950 x 1650 x 2600

2050 x 1550 x 2600

1800 x 1200 x 2500


(LxWxH)

(LxWxH)

(LxWxH)

Net Weight

2200 Kg.

1500 Kg.

1200 Kg.

Trade Information
  • Supply Ability
  • 1 Unit Per Day
  • Delivery Time
  • 1 Week
  • Packaging Details
  • Depend on product
  • Main Export Market(s)
  • Africa, Asia
  • Main Domestic Market
  • All India
  • Certifications
  • ISO 9000
